Amiga 2000 (Floppy)

Part 4/5

After the SCSI HD conversion from a real HD to a SD-Card, it is time to add a way to easily use floppy images by adding a GoTek floppy emulator.

The GoTek case is a lot smaller than the 3.5" floppy opening, some kind of frame is needed.

/img/a2000_floppy_old.jpg

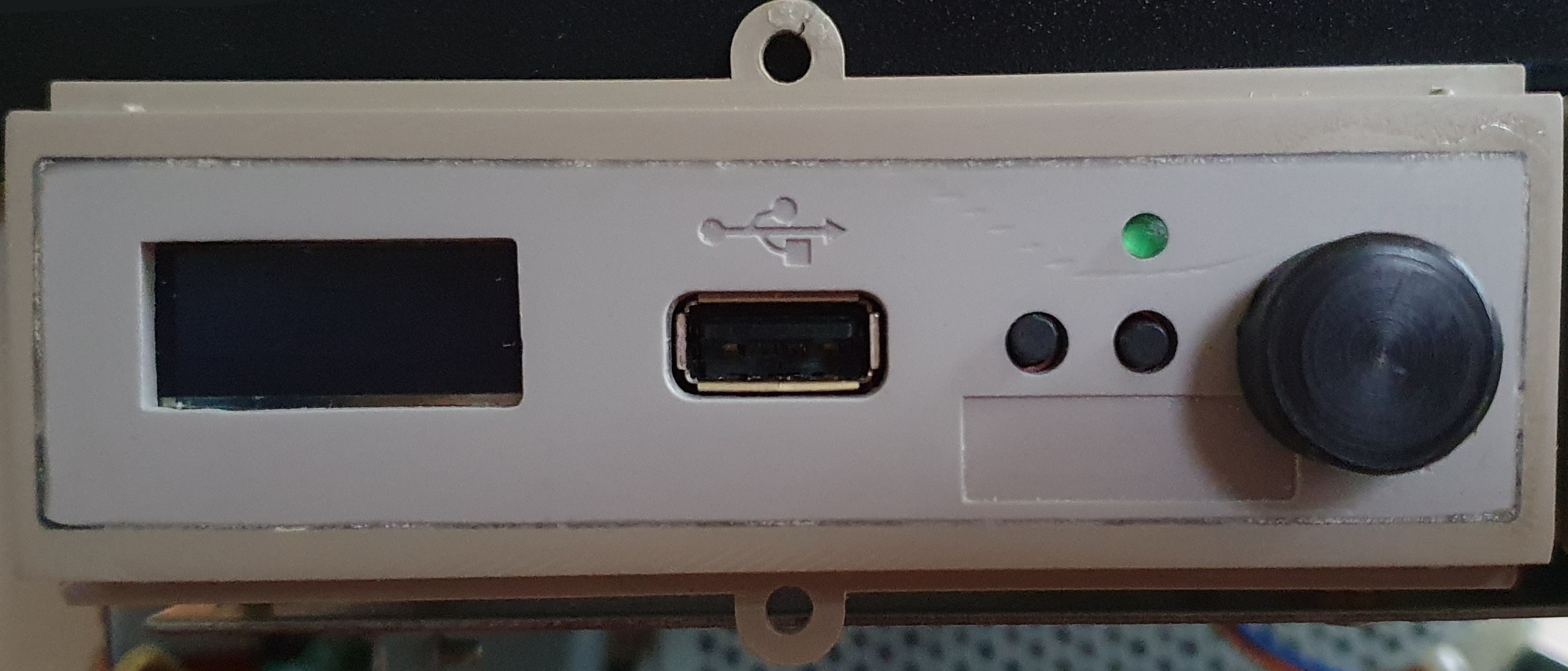

Since the previous owner already drilled some holes in the slot plate I used that as a frame for the GoTek. I simply cut out the center and super glued the frame to the GoTek case.

/img/a2000_floppy_front.jpg

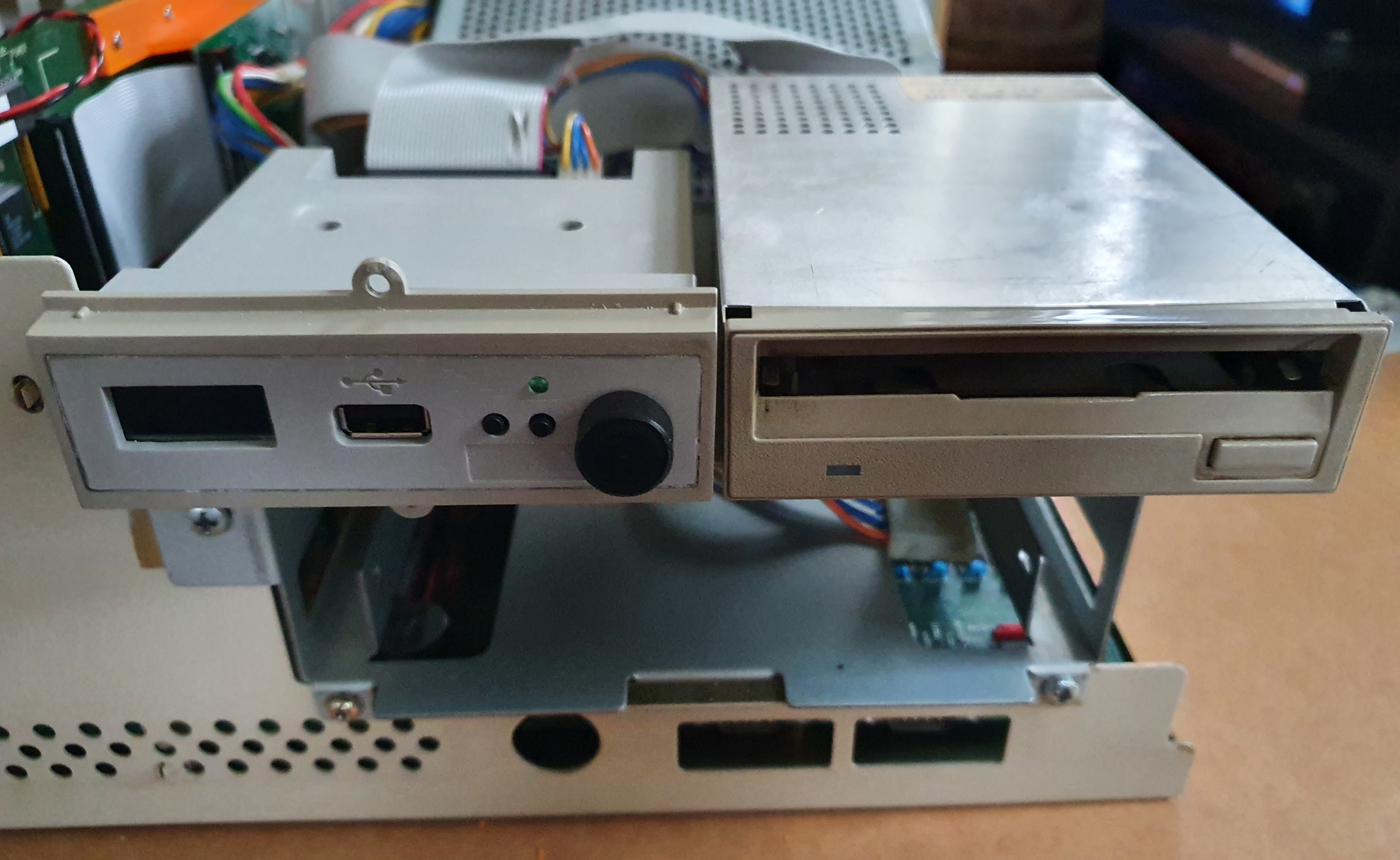

The GoTek case is then simply bolted to the frame with 4 10mm distance bolts like a real floppy drive. Together with a real floppy drive it fits nicely in the Amiga 2000 drive bay.

/img/a2000_floppy_build_in.jpg

With all the pieces in place the next thing will be to install all the software and demonstrate the finished machine. But that is something for the final part.
